Project Description

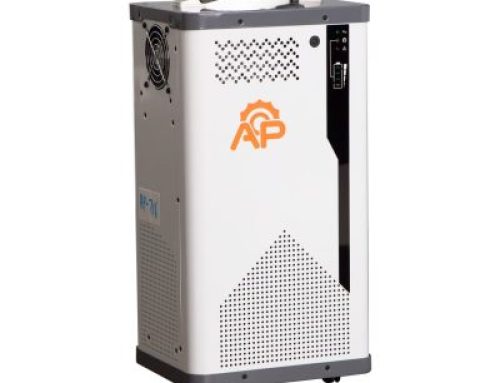

mobile power bank 2.56-5.12kWh pure sine wave with MPPT model ALP MOBILE ALL -IN-ONE ESS

  • Simple: Pre-programed system ,plug & play , no bother to electricians ;
  • Integrated:Build-in offgrid solar inverter and lithium battery modules ;
  • Smart : Mobile with wheels ,stay powered at anywhere .
  • Significantly higher cost-performance ratio than similar products on the market. Welcome to inquire via email.

Specification

MODELALP-2560Wh-24ALP-5120Wh-24ALP-2560Wh-12
Rated Inverter Power3000VA/2400W
INPUT
Voltage230Vac+5%
Selectable Voltage Range170-280Vac(For Personal Computers)
Frequency Range50Hz
AC Input ConnectionIEC C19
PVInput ConnectionPP75
SOLAR CHARGER & AC CHARGER
Solar Charger typePWM
Maximum PV Array Power1200W
Maximum PV Array Open Circuit Voltage80V DC
Maxmum Solar Charge Current50A50A20A
CurrentAC Charge Current40A40A20A
Maximum Charge Current90A90A20A
BATTERY
Capacity2560Wh(1*25.6V 100Ah)5120Wh(1*25.6V 200Ah)2400Wh(2*12V 100Ah)
Nominal Voltage25.6Vdc25.6Vdc2*12Vdc
Full Charge Voltage(FC)28.2V28.2V27V
Full Discharge Voltage (FD)21V21V21V
Max Continuous Discharging Current100A100A100A
OUTPUT
AC Voltage Regulation (Batt. Mode)230VAC土5%
Surge Power3000VA/2400W
Efficiency (Peak)93%
Transfer Time10 ms (For Personal Computers)
WaveformPure Sine Wave
No Load Power Consumption<60W
Output Type4*AC Outlets
COMMUNICATION
Communication PortsUSB/RS232(Baud Rate2400)
ENVIRONMENT
Humidity20%~95%
Storage temperature‘-15~60℃(Battery:0~40℃)
Operation Temperature0-40℃
PHYSICAL
Dimension(net),D*W*H(mm)500*340*710
Dimension(package), D* W* H (mm)600*440*880
Net Weight (kgs)455282
Gross Weight (kgs)537090

Product specifications are subject to change without further notice
